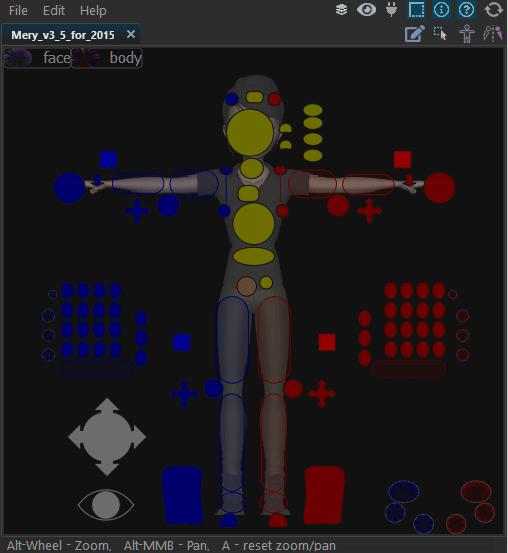

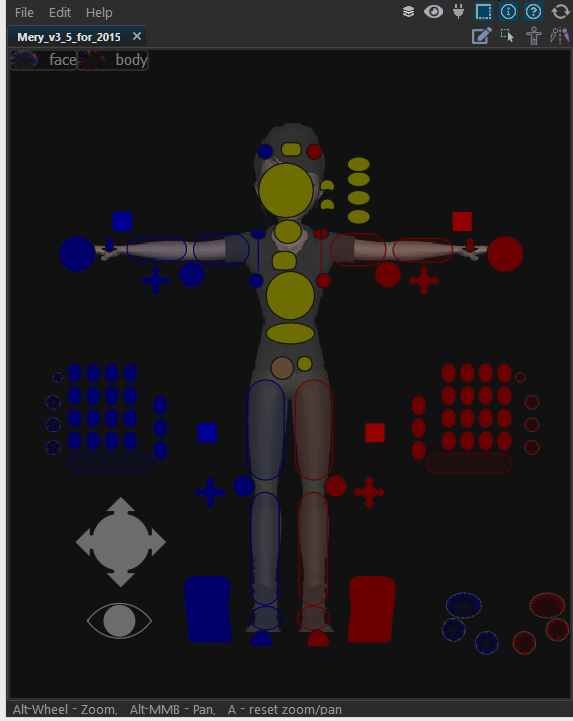

Picker Viewer: Animation

------------------------------ ISOLATE PARTITIONS--------------------------------

Each partition has its own selection set  (at the top).

When you  on it , only this partition will be displayed.

To return back,  again.

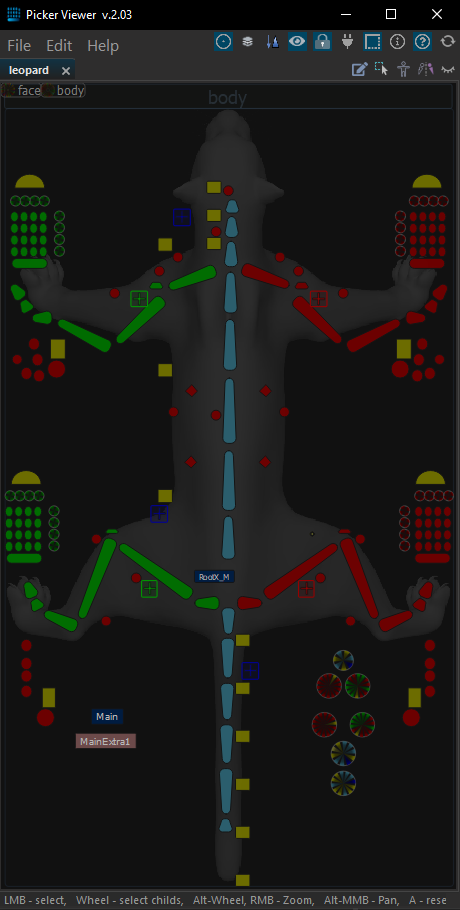

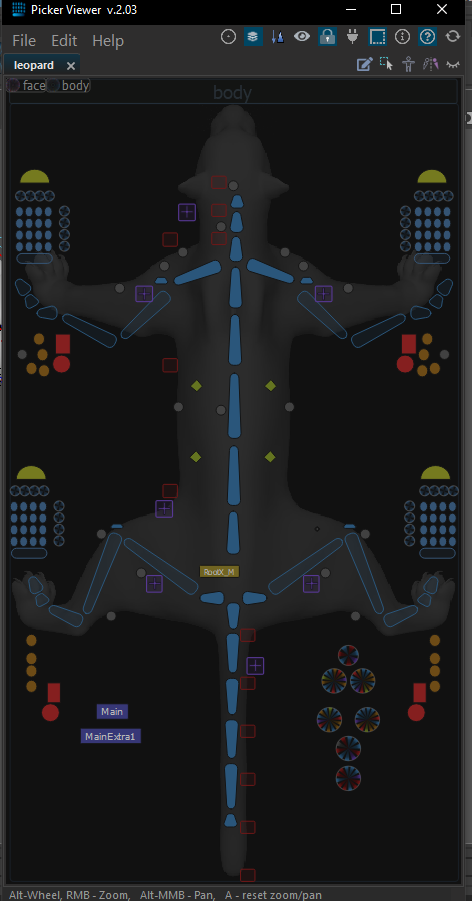

------------------------------CHECKBOXES--------------------------------

Next about the top checkboxes:

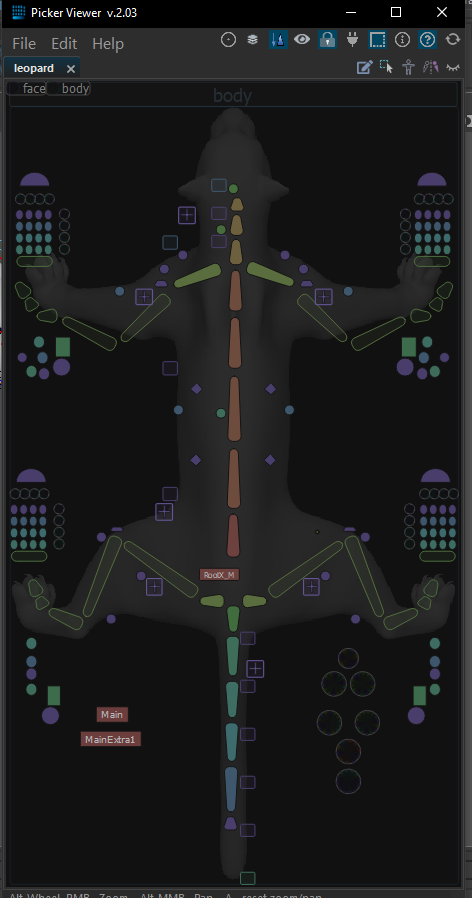

•   type - controls are colored by type
•   hidden - in normal mode, if the control is hidden, the picker shows it semi-transparent. If the checkbox is on - all controls are visible.
•   key - shows the additional contour if the animation, constrain, or other node types are present on the attributes.

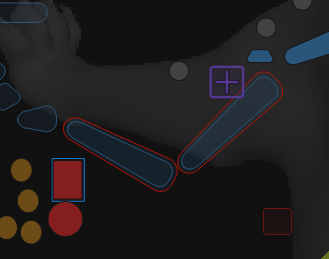

•    sel - if the outline of selected objects is visible. If it is unchecked, the objects are simply highlighted.
•   info - shows the names and attributes of the selected controls in the background
•   tips - shows hints at the bottom of the picker

------------------------------ SELECT --------------------------------

You can

• select controls by hierarchy by scrolling the mouse wheel.
• Double-click to select controls in one branch of the hierarchy.
• hold Ctrl - add, remove selection

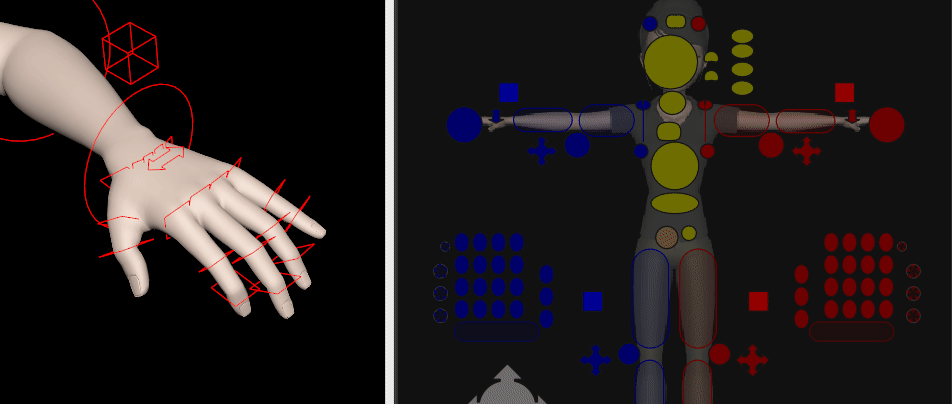

------------------------------ POSE CHARACTER --------------------------------

Controls can be manipulated with   in the picker itself  (press the W, E  button before).

When rotating with Alt holding, the rotation occurs in the plane of the screen.

Double-clicking on FKIK controls switches the FKIK mode.

Transformation works in persp camera.

Important - to cancel manipulations in the picker by pressing Ctrl-Z you have to press when the cursor is in the picker area.

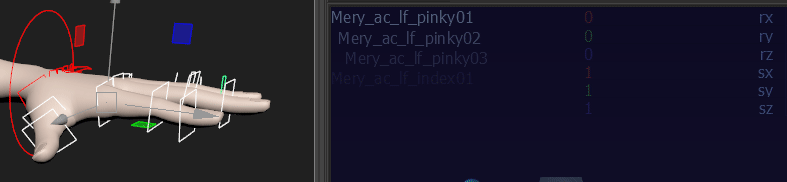

------------------------------ CHANNEL BOX  --------------------------------

There is also the Channel Box mode in the picker, which is activated  .

The list of objects is on the left, and the list of attributes is on the right.

You may change attributes of all objects by moving the cursor to the left or to the right, or to select an attribute for each object separately.

Thank you for your attention.
